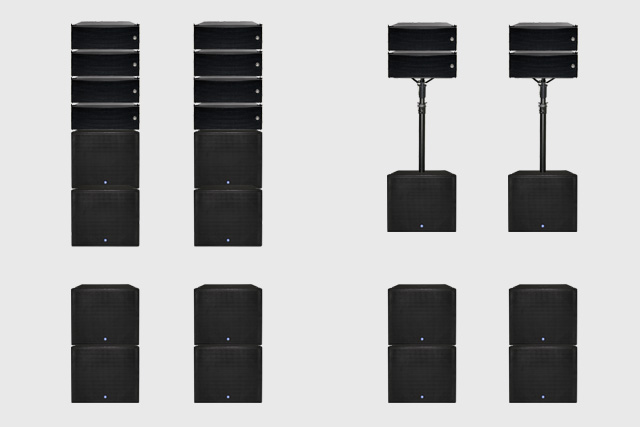

L-ARRAY 28HA

Back
Hi-Res Manual
  • 3200W Peak Power
  • L-ARRAY 28HA Active Satellite Dual 8" Woofers, 2 x 1" Drivers, 1,75" (44,5mm) Voice Coil
  • L-ARRAY 18SA Active Subwoofer 18" Woofer
Model L-ARRAY 28HA
System Type 8" 2-way Active Speaker System
Output Power 800W Continuous / 1600W Program Power / 3200W Peak Power
Maximum SPL @ 1m 130 dB Max.(calcuated)
Frequency Response 65Hz-20kHz (-10dB)
Impedance 8 ohms
Transducer Low 2 x 8'' Ferrite Woofer , 2'' (50.5mm) Voice Coil
Transducer High 2 x 1'' Neodymium Compression Driver, 1.75'' (44.5mm) Voice Coil
Crossover Frequency 1.8kHz
Dispersion(-6dB) 110° Horizontal, 15° Vertical
Attachment Points Adjustable Rigging System, Vertical Splay Adjustable in 1.0° Increments from 0°-12°
Connectors Input: 1 x Combo-XLR & 1/4”Balanced / Unbalanced Line Input / Output: 1 XLR Thru Balanced line
Enclosure Construction Polypropylene enclouse, Steel Grille with foam, Two Handles on Each Side.
Fittings information 4 Flying Points
Model L-ARRAY 18SA
System Type 18" Active Line Array Vented Subwoofer
Mounting 4-Point Suspension, Three Configuration Styles(Small,Stack and Array)
Dimensions (HxWxD) 292mm x 594mm x 420mm
Power Rating 1000W Continuous / 2000W Program Power / 4000W Peak Power Class D @ 8Ohms
Transducer Low 18" Ferrite Woofer, 4"(100mm) Voice Coil with Long Excursion
Net Weight Approach 21,5kg
Frequency Response 35Hz – 150Hz (-10dB)
Maximum SPL @ 1m 135dB (calculated)
Connections Input: 1 x Combo-XLR&1/4”Balanced / Unbalanced Line Input / Output: 1 XLR Thru Balanced line
Network I/O Input: 1 x etherCON (RJ45) Input; Output: 1 x etherCON (RJ45) Output
DSP Processor Venue Settings (Adjustable via Optional Software), 32bit, 24bit/48kHz Audio Conversion AD / DA,Digital Volume Control
External Controls 9 Presets EQ / 1 Service Use / Power ON with Green LED, Clip / SIG/ PROT with LED
Electronic Protections Over heat Protection / Short Circuit Protection / Digital Compressor
Enclosure Construction Plywood Cabinet, Resistant Black Paint, Metal Grille with Foam, Rubber Feet, Four Handles on Each Side.
Fittings information 4 Flying Points
Mounting One Metal Standard Pole-Mount
Dimensions (WxHxD) (H) 692mm x (W) 594mm x (D) 766mm
Net Weight Approach 68.8Kg
